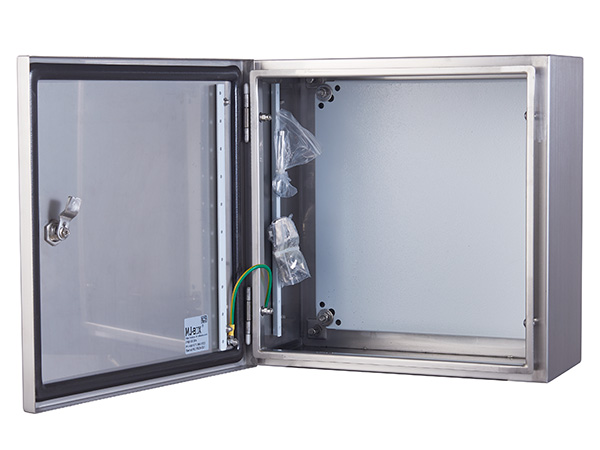

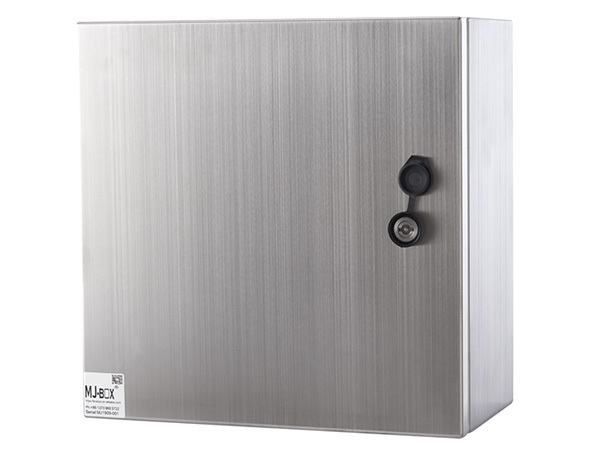

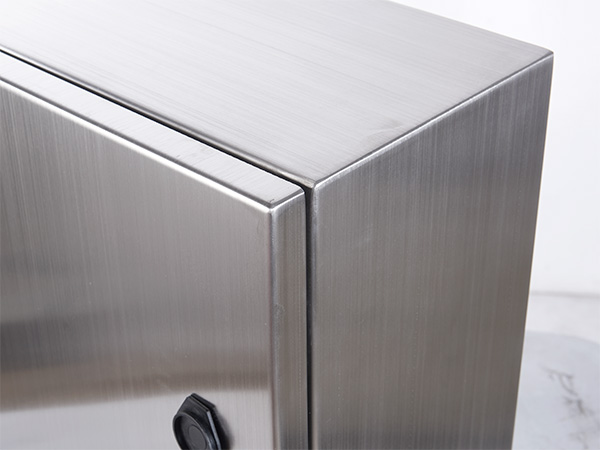

Wall Mount Stainless Steel Enclosure, Electrical Enclosure with Turn Latch, Hinged, IP66

MJ-Box could provide range of stainless Standard Enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect equipment in extreme conditions - including corrosive marine. They are also designed to easily bolt in accessories such as Escutcheon/Inner doors, 19" racks etc.

Specifications and Features
  • Made from 1.5mm 304stainless steel
  • Fully welded construction - IP66 rating
  • Reversible door (left hinged is the default position)

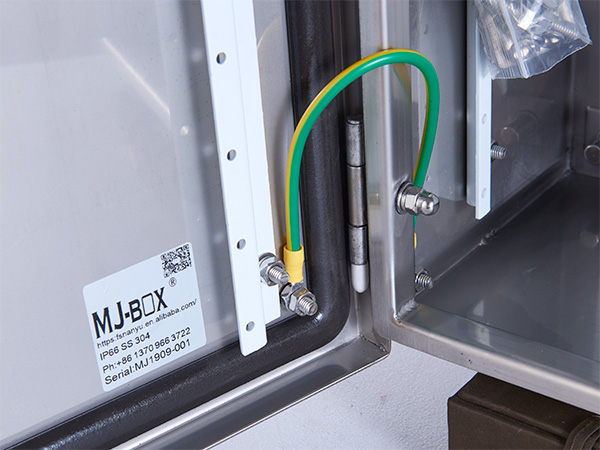

  • Door earthed to cabinet via earth studs
  • Polyurethane door seal
  • 2mm white powder coated* galvanised steel gear tray included
  • 2 x Z-brackets included to help with cable management across door hinges
  • Folded lip/gutter to ensure effective door seal

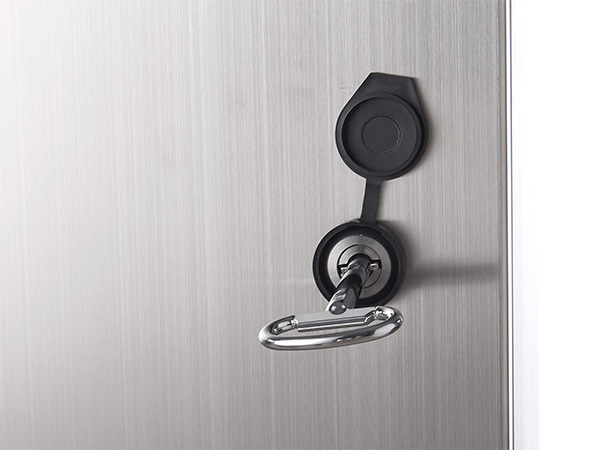

  • Door fitted with concealed hinges on one side and 2-bit stainless steel
  • lock on the other (600mm high and above have 2 x locks)
  • Rear mounting holes fitted with blind nutserts to ensure IP rating*
  • 4 x wall mounting brackets included

* Some gear trays are not powder coated and some enclosures do not have nutserts. Please check with us if this is an important requirement for you.

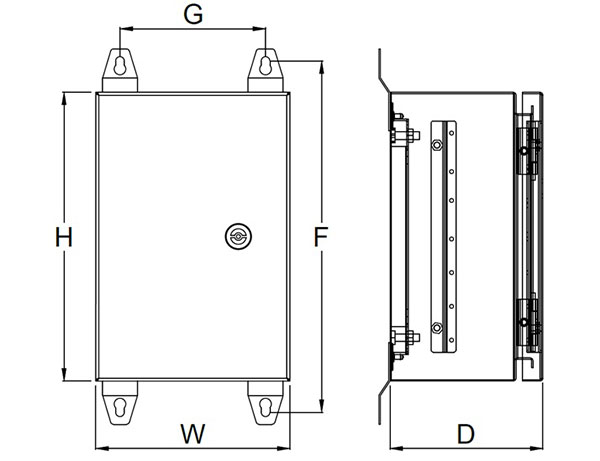

Parameter
SKU / Item Number H W D
SS300X200X150 300 11.8 200 7.9 150 5.9
SS300X300X150 300 11.8 300 11.8 150 5.9
SS300X300X200 300 11.8 300 11.8 200 7.9
SS400X300X200 400 15.7 300 11.8 200 7.9
SS400X400X200 400 15.7 400 15.7 200 7.9
SS500X400X200 500 19.7 400 15.7 200 7.9
SS500X500X300 500 19.7 500 19.7 300 11.8
SS600X400X200 600 23.6 400 15.7 200 7.9
SS600X400X300 600 23.6 400 15.7 300 11.8
SS600X500X250 600 23.6 500 19.7 250 9.8
SS600X600X300 600 23.6 600 23.6 300 11.8
SS800X600X200 800 31.5 600 23.6 200 7.9
SS800X600X300 800 31.5 600 23.6 300 11.8

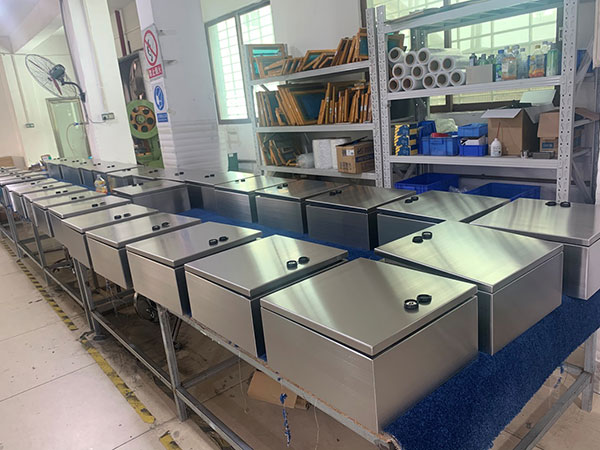

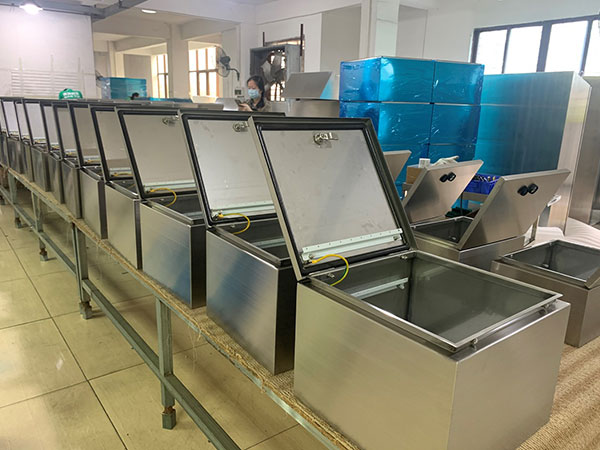

Workshop
Inquiry
Other Products

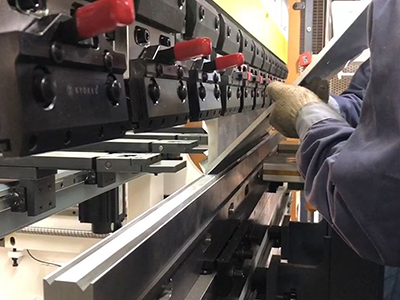

Sheet Metal Fabrication

We specialize in sheet metal fabrication since our foundation. So far, we have produced hundreds of sheet metal products, including stainless steel distribution box, electric meter box, gas meter box, steel workbench, fire hydrant cabinet, smart express cabinet, tool box, household distribution box, low voltage distribution box, light box, stainless steel plate for pharmaceutical factory, stainless steel rubbish bin, etc. In addition, custom service is also available to you.

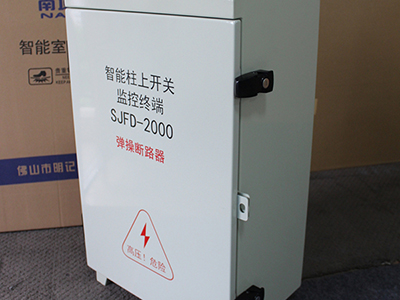

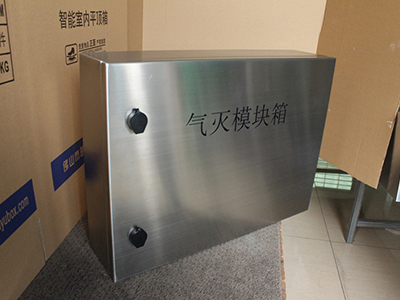

Project Gallery
